>> Current location： Home - Product

Product strengths

- PC case

- Universal input

- Constant current/ voltage

- 50,000hrs life expectancy

- Active PFC

- PWM dimming (Polarity-free)

- 0-10V dimming

- 100% aging

- OVP/ Short protection

- RoHS compliant

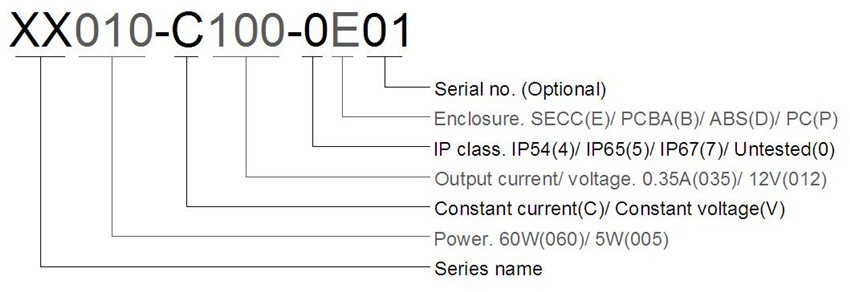

Product naming

Model	Input voltage	Output current	Output voltage	Output power
LT030-C040-0P02	100-240V	0.4A	5-75V	2-30W
LT030-C040-0P03	100-240V	0.4A	5-75V	2-30W
LT026-C035-0P02	100-240V	0.35A	5-75V	1.75-26.25W
LT026-C035-0P03	100-240V	0.35A	5-75V	1.75-26.25W
LT020-C027-0P02	100-240V	0.27A	5-75V	1.35-20.25W
LT020-C027-0P03	100-240V	0.27A	5-75V	1.35-20.25W
LT034-C070-0P02	100-240V	0.7A	5-48V	3.5-33.6W
LT034-C070-0P03	100-240V	0.7A	5-48V	3.5-33.6W
LT029-C060-0P02	100-240V	0.6A	5-48V	3-28.8W
LT029-C060-0P03	100-240V	0.6A	5-48V	3-28.8W
LT024-C050-0P02	100-240V	0.5A	5-48V	2.5-24W
LT024-C050-0P03	100-240V	0.5A	5-48V	2.5-24W
LT017-C035-0P02	100-240V	0.35A	5-48V	1.75-16.8W
LT017-C035-0P03	100-240V	0.35A	5-48V	1.75-16.8W
LT030-C100-0P02	100-240V	1A	5-30V	5-30W
LT030-C100-0P03	100-240V	1A	5-30V	5-30W
LT027-C090-0P02	100-240V	0.9A	5-30V	4.5-27W
LT027-C090-0P03	100-240V	0.9A	5-30V	4.5-27W
LT021-C070-0P02	100-240V	0.7A	5-30V	3.5-21W
LT021-C070-0P03	100-240V	0.7A	5-30V	3.5-21W
LT030-C120-0P02	100-240V	1.2A	5-25V	6-30W
LT030-C120-0P03	100-240V	1.2A	5-25V	6-30W
LT024-V012-0P02	100-240V	2A	12V	24W
LT030-V024-0P02	100-240V	1.25A	24V	30W
LT030-V024-0P03	100-240V	1.25A	24V	30W
LT032-V036-0P02	100-240V	0.9A	36V	32.4W
LT032-V036-0P03	100-240V	0.9A	36V	32.4W
LT034-V048-0P02	100-240V	0.7A	48V	33.6W
LT034-V048-0P03	100-240V	0.7A	48V	33.6W

Dimming characteristics

- Perfect dimming visual effect.

- Precisely designed dimming curve. Output can be turned off by a dimmer.

Output switches at the dimmer frequency. Dimming effect is achieved by switching at different duty cycle.

Product structure

- PC enclosure

- Input terminal block. Easy parallel connection.

- Dimming connectors. Easy parallel connection.
