Product strengths

- Metal case

- Universal input

- Constant current

- 50,000hrs life expectancy

- Active PFC

- PWM dimming (Polarity-free)

- 100% aging

- OVP/ Short protection

- RoHS compliant

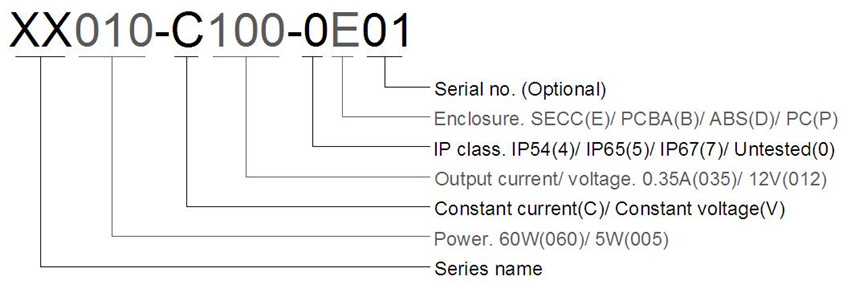

Product naming

Model Input voltage Output current Output voltage Output power Specification download
EM016-C050-0E 100-242V 0.5A 21-31V 10.5-15.5W
EM014-C350-0E 100-242V 0.35A 28-40V 9.8-14W
EM013-C050-0E 100-242V 0.5A 16-26V 8-13W
EM018-C070-0E 100-242V 0.7A 16-26V 11.2-18.2W
EM026-C100-0E 100-242V 1A 16-26V 16-26W
EM014-C035-0E02 100-242V 0.35A 24-40V 8.4-14W
EM020-C050-0E 100-242V 0.5A 24-40V 12-20W
EM028-C070-0E 100-242V 0.7A 24-40V 16.8-28W
Dimming characteristics

- Precisely designed dimming curve. Output can be turned off by a dimmer..

- Hysteresis mechanism to prevent unstable output.

- Reference dimmer (Panasonic NQ20356)

Product structure

- SECC enclosure

- Step casing design. Effective separation of heat generated from LED lamp.

- WAGO/ Panasonic input terminal block. Easy parallel connection.

- WAGO dimming connectors. Easy parallel connection.

- JST output connectors. Safe and reliable.
